Retrofit Kits Light
Retrofit Kits Light

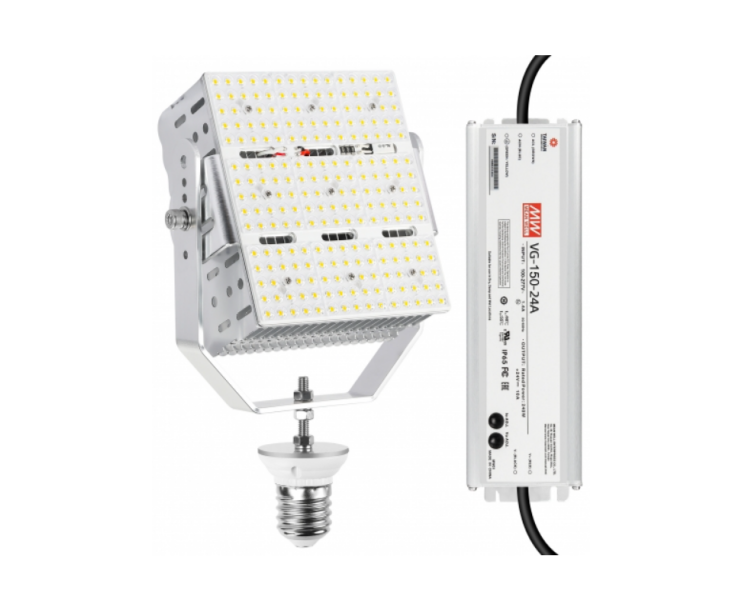

LED Retrofit kits 100W~300W design with innovation flat panel appearance is a perfect choice for pole fixture, such as shoebox, cobra head. Aluminum fin heat sink design with sunon fan active cooling technology keeps driver and LED array cool for maximum performance in enclosed fixture. Many unique features including rota-table, external Meanwell driver, mogul screw and yoke mount bracket made the light are special and functional. LED Retrofit kits is ETL safety certification approved.
APPLICATIONS
Widely used in replacing traditional light sources in fixtures, good for enclosed fixtures.
Advantage
- UL cUL DLC approved
- Adjustable bracket for vertical and horizontal application
● Overheat protection sensor
● Easy install retrofit traditional light
● Meanwell driver 100~277V,277~480V input
● 120 degree beam angle
Specification
Model |
Base |
CCT |
Lumen |
Input Voltage |
Beam Angle |
Lens |
120W |
E39 |
5700K |
16800LM |
100-277V |
360º |
|
120W |
E39 |
5700K |
16800LM |
277-480V |
360º |
|
120W |
E39 |
5000K |
16800LM |
100-277V |
360º |
With Lens |
120W |
E39 |
5000K |
16800LM |
277-480V |
360º |
With Lens |
150W |
E39 |
5000K |
21000LM |
100-277V |
360º |
|
150W |
E39 |
5000K |
21000LM |
277-480V |
360º |
|
150W |
E39 |
5700K |
21000LM |
277-480V |
360º |
|
150W |
E39 |
5000K |
21000LM |
100-277V |
360º |
With Lens |
150W |
E39 |
5000K |
21000LM |
277-480V |
360º |
With Lens |
200W |
E39 |
5000K |
28000LM |
100-277V |
360º |
|
200W |
E39 |
5700K |
28000LM |
100-277V |
360º |
|
200W |
E39 |
5700K |
28000LM |
277-480V |
360º |
|
200W |
E39 |
5000K |
28000LM |
100-277V |
360º |
With Lens |
240W |
E39 |
5000K |
33600LM |
100-277V |
360º |
|
240W |
E39 |
5700K |
33600LM |
100-277V |
360º |
|
240W |
E39 |
5000K |
33600LM |
277-480V |
360º |
|
240W |
E39 |
5000K |
33600LM |
100-277V |
360º |
With Lens |
240W |
E39 |
5000K |
33600LM |
277-480V |
360º |
With Lens |
300W |
E39 |
5000K |
42000LM |
100-277V |
360º |
|
300W |
E39 |
5700K |
42000LM |
100-277V |
360º |
|
300W |
E39 |
5000K |
42000LM |
277-480V |
360º |
