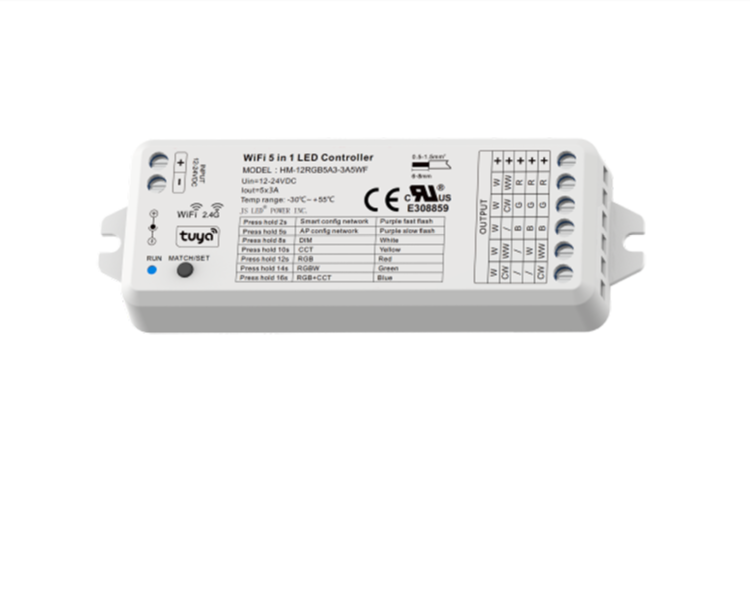

LED WIFI & RF 5 in1 RGB/RGBW/CCT Controller

Features

5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strips

DC power socket input and 5 channel constant voltage output

Tuya APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay turn on/off light, timer run, scene and music play function

Voice control, support amazon ECHO and TmallGenie smart speaker

Match with RF 2.4GHz remote control optional

User need set light type by press key before Tuya APP network connection and match RF remote of the same light type

Each HM-12RGB5A3-3A5WF controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously

Specification

Input voltage: 12-24VDC

Input current: 15.5A

Output voltage: 5 x (12-24)VDC

Output current: 5CH,3A/CH

Output power: 5 x (36-72)W

Output type: Constant voltage

Operation temperature: Ta: -30OC ~ +55OC

Case temperature (Max.): T c: +85OC

IP rating: IP20

Input signal: Tuya APP + RF 2.4GHz

Control distance: 30m(Barrier-free space)

Dimming gray scale: 4096 (2^12) levels

Dimming range: 0 -100%

Dimming curve: Logarithmic

PWM Frequency: 500Hz (default)

EMC standard (EMC): EN55015,EN61547

Safety standard(LVD): EN61347,EN62493

Radio Equipment(RED): EN300 440,EN50663,EN301 489

Certification(CE-RED): Safety+EMC+RF

Warranty: 5 years

Protection: Reverse polarity Over-heat
