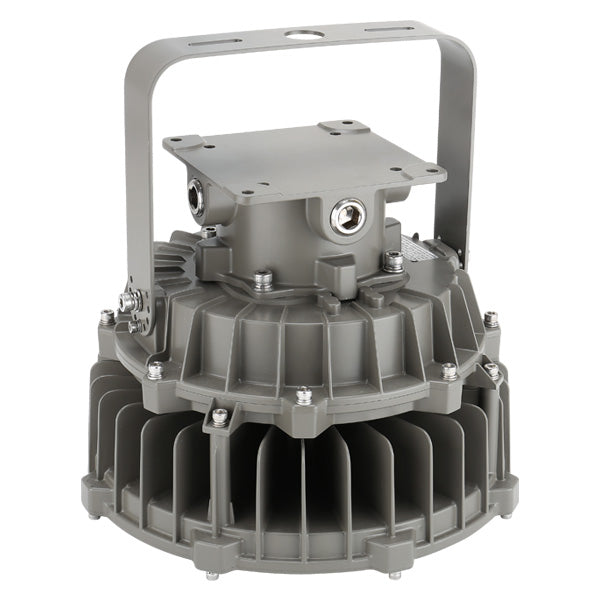

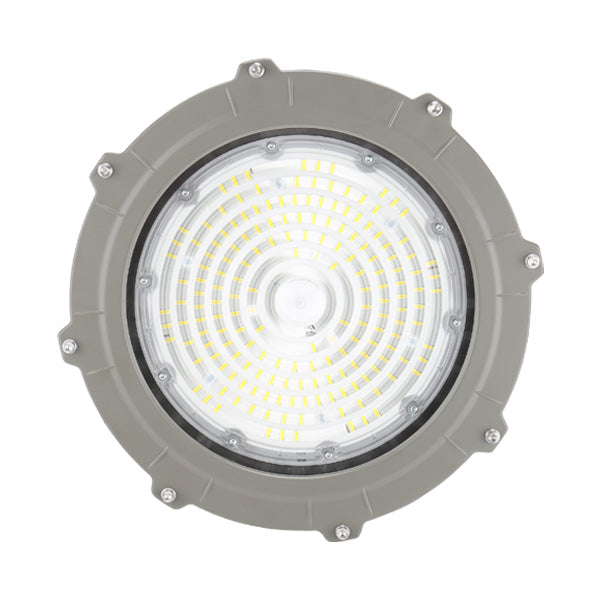

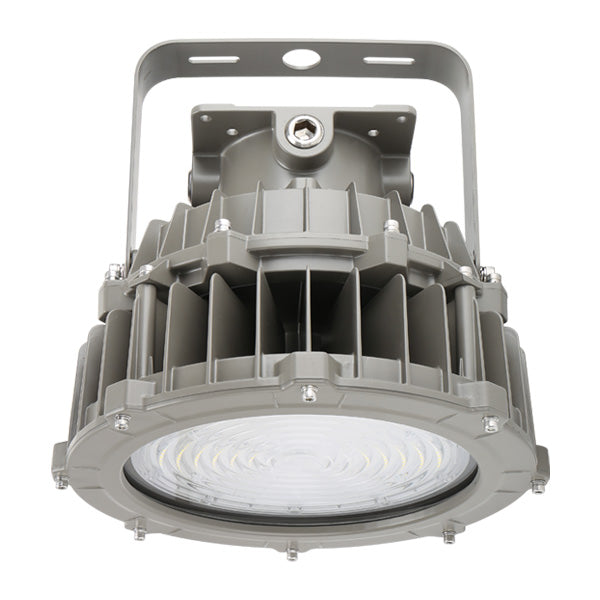

100W-5000K-AC 120~277V-Max 15,500 Lm-Hazardous Low Bay Light Platinum Line-01

At 150 lumens per watt with 3 different beam patterns, the HR Series brings design, excellence, and durability to harsh and hazardous rated lighting. Various installation ways for different applications. Explosion proof, the HR is suitable where flammable gases, vapors and combustible dusts are present.

APPLICATIONS
Oil and gas rigs. Petrochemical plants. Paint spray booths. Hazardous location.

FEATURE
● Offers scalable lumen packages from 15,500 to 31,500 Lumens.
● Comes with 0 – 10V/PWM/Rx 3-in-1 dimming.
● Universal input voltage (120 – 277VAC or 347 – 480VAC).
● Features multiple installation options like trunnion, wall, pendant, round pole and ceiling mounts.
● Made of robust cast aluminum housing with low copper content, resistant to shock and vibration.

SPECIFICATIONS
Certifications: UL Certificate
Power: 100 Watts
CCT: 5000K
Lumens: Max 15,500 LM
Beam Angle: 90 degrees
Lamps efficiency: >90%
CRI: >70
Input voltage: 120-277V

SPECIFICATION FILE
100W-5000K-AC 120~277V-Max 15,500 Lm-Hazardous Low Bay Light Platinum Line-01
