2x2-40W/30W/25W/20W/15W Power Adjustable-6500K/5000K/40000K/3500K/3000K CCT Adjustable-AC 120~277V-Max 5,200 Lm-Back Lite Panel Titanium Line-01 (4pcs Package)

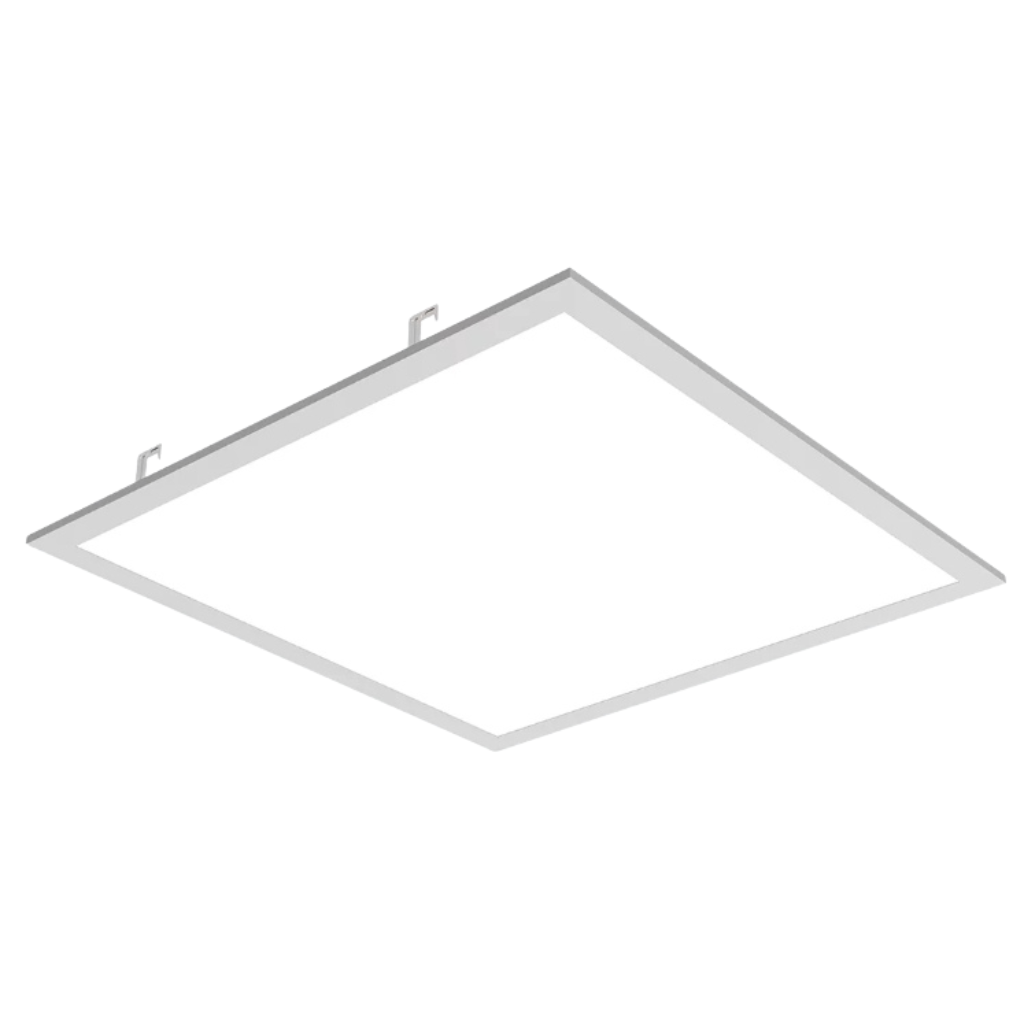

Backlit Panel Lighting Titanium Line-01 is well designed with backlite technology for even, edge to edge illumination that covers the entire surface of panel with never yellowish. The CCT adjustable is 6500K/5000K/4000K. 2’x2’ power adjustable 40W/35W/30W/25W/20W. Easy to install and designed for 50,000 hours lifetime.

APPLICATIONS
Office, Schools, Convenience store, medical facilities.

FEATURE
●  UL, certified.
●  Energy saving, long lifespan.
●  Easy to install and operate.
●  THD: <10%.
●  Operating temperature -20˚ C to 35˚ C.
●  Operating frequency: 50/60Hz.
●  Standard with 0-10V dimming Driver.

SPECIFICATIONS
Certifications: UL Certificate
Power: 40-30-25-20-15 Watts Power Select-able
CCT: CCT 6500K-5000K-4000K-3500K-3000K Color Select-able
Lumens: Max 5,200 LM
Beam Angle: 120 degrees
Lamps efficiency: 95%
CRI: >80
Input voltage: 100-277V
Dimming Driver: 0-10V
Package: 4 pcs package

SPECIFICATION FILE

2x2-40W/35W/30W/25W/20W Power Adjustable-6500K/5000K/40000K CCT Adjustable-AC 100~277V-130 Lm Per Watts-Back Lite Panel Titanium Line-01
